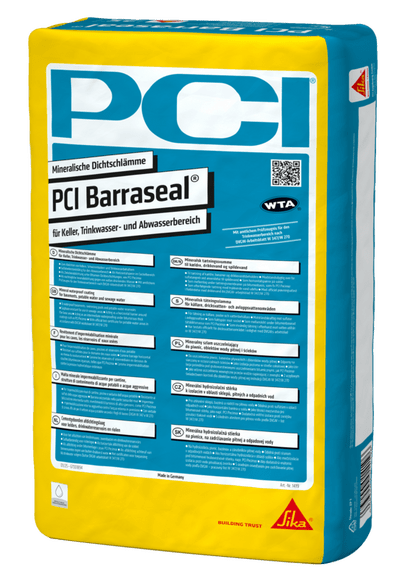

PCI Barraseal®

Mineral waterproofing slurry

for basements, drinking water and wastewater areas

Technical data sheet

Mineral waterproofing slurry

for basements, drinking water and wastewater areas

Technical data sheet

Areas of application

Product features

Areas of application

For indoor and outdoor use.
For wall, floor and overhead application.
For producing cement-based waterproofing layers in structural and civil engineering construction, in new and old buildings.
As waterproofing for all water exposure classes in accordance with DIN 18533 with official test certificate "mineral waterproofing slurry", on substrates where crack formation/change in width has been completed.
For waterproofing reservoirs, e.g. drinking water, to DIN 18535 up to a filling level of 10 meters.
As an intermediate waterproofing layer under bitumen thick coatings such as PCI Pecimor.
For waterproofing basements, moist rooms and retaining walls.
For protecting surfaces in accessible channels, open channels and sewage plants and other sewage structures.
For waterproofing brickwork exposed to salt and moisture in combination with the PCI Saniment products.
For waterproofing areas exposed / not exposed to water.

Product features

Water impermeable and frost resistant, multi-purpose use indoors and out up to a head of water of 10 meters.
Creamy consistency, easy to apply.
Can be applied by brush, trowel and spray gun.
Reliable adhesion, no primer or bonding slurry required.
Sulfate resistant against driving attacks in sewage areas.
High resistance to permanent and mechanical loads.
Excellent wet abrasion resistance, tested like non-vitrified pipes over 100,000 cycles.
Permanent resistance against heavy chemical attack of exposition class XWW3 to DIN 19573 (tested at ph 4.0).
For use in accordance with EN 206-1 with exposition classes XS 1-3, XF 1-3, XA 1-3.
With official test certificate for drinking water areas in accordance with DVGW worksheet W 347 / W 270.
Official test certificate in accordance with test principles for mineral waterproofing slurries.
Certified to EN 1504 part 2.

Colors: grey

Forms of delivery: 25-kg-bag

Consumption calculator

Your specification

Thickness

Area (m²)

Calculate now

Your Result

Quantity Required approximately

corresponds

25-kg-bag

pieces

This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.
