PCI Nanofug®

Multi-use flexible joint grout

especially for vitrified tiles and non-vitrified tiles

Technical data sheet

Multi-use flexible joint grout

especially for vitrified tiles and non-vitrified tiles

Technical data sheet

Areas of application

Product features

Colors

Areas of application

For indoor and outdoor use.
For walls and floors.
For grouting narrow joints in e.g. mosaic coverings and also wide joints in split clinker slabs.
For non-vitrified tiles, vitrified tiles, split tiles, porcelain mosaic, glass mosaic, glass tiles, brick tiles and terracotta; also suitable for fully-vitrified tiles.
In living areas, bathrooms, showers, on balconies, terraces, facades, in public and commercial areas subject to frequent wetness, e.g. shower facilities, saunas, toilets. In showrooms and presentation areas.
On heated screeds, dry screeds, precast concrete elements, plasterboards, gypsum blocks, particle boards, wooden floorboards and areas subject to extreme variations in temperature.

Product features

With unique binding agent combination and nanotechnology, for joints with a high optical demand.
Surface repellent to water and dirt due to minimal absorption of water.
EASY-TO-CLEAN EFFECT due to special additives.
Good workability, creamy and workable consistency.
Frost resistant, multi-use application indoors and out, on walls and floors.
Flexible, compensates variations in temperature.
Crack-free curing, the joint does not crack and break open.
Low in chromates.
Test certificate: building material class A2 (non-combustible building material to DIN 4102).
All test certificates are available under www.pci-augsburg.de.

Colors: 02 bahama beige, 11 jasmine, 16 silver grey, 18 manhattan, 19 basalt, 20 white, 21 grey, 23 light grey, 31 cement grey, 43 pergamon, 47 anthracite, 03 caramel, 05 mid brown, 12 anemone, 40 black, 41 dark brown, 44 topas

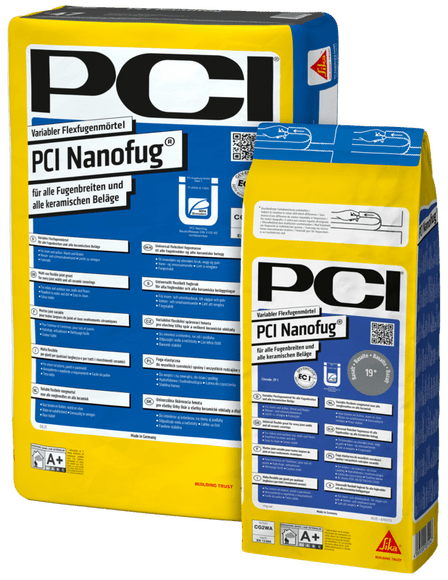

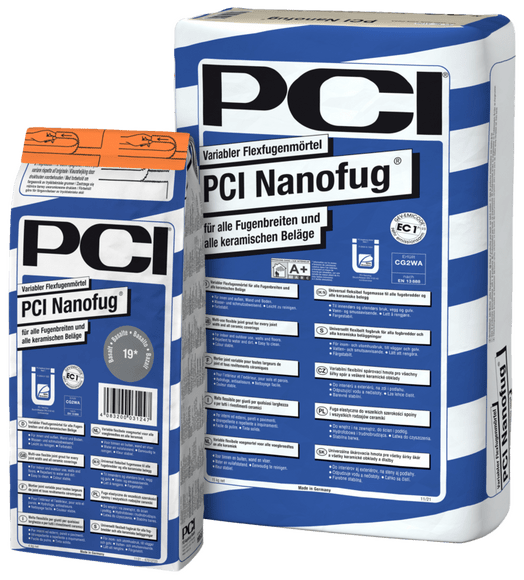

Forms of delivery: 15-kg-bag/ 4-kg-bag

Colors

Consumption calculator

Your specification

Joint width (mm)

Joint depth (mm)

Tile size (cm) x

Area (m²)

Calculate now

Your Result

Quantity Required * approx

kg

equivalent *

15-kg-bag

pieces

4-kg-bag

pieces

* Not all colours are available in all packaging sizes!

This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.
