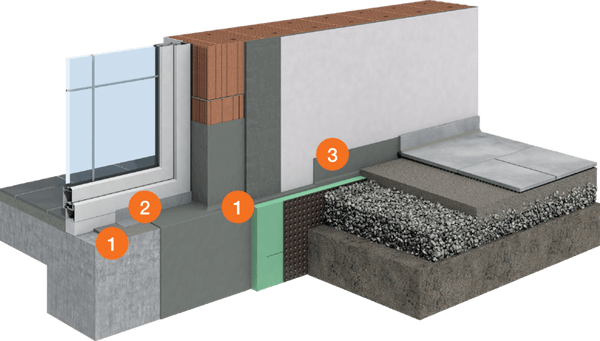

System for Plinth for Full-Length Windows
Interface between paving/paving slabs and the building plinth with full-length windows
Description
Landscape gardeners are the last craftspeople to work on this interface and require simple solutions for connections to the building waterproofing and the plinth render, with waterproofing. The plinth system for full-length windows is intended to provide orientation for the effective and attractive connection of paving to the plinth area and for full-length window elements.
System advantages
- Proper connection to the plinth zone with an easy to process, flexible mineral waterproofing slurry
- Easy application to all mineral substrates (e.g. old and new render)
- Extremely secure application thanks to the crack-bridging properties of the flexible mineral waterproofing slurry
- Decorative design possible with waterproofing material
You need
1
Concave molding
PCI Polyfix® plus L
Quick setting cement mortar for the quick repair in above and below ground situations
2
Connection of window element
PCI Epoxigrund 390
Special primer on absorbent and non-absorbent substrates
3
Waterproofing
PCI Barraseal® Turbo
Flexible two-component reactive waterproofing membrane for external basement walls, foundations and concrete elements
More product systems
System for Multi-Use Paving
System for laying and grouting paving subject to light or moderate mechanical loading

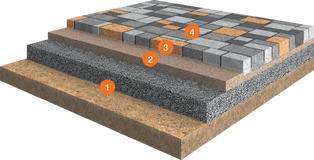

System for Road Paving
System for laying and grouting paving subject to moderate or high mechanical loading
System for Garden Wall
System for attractive, durable garden walls
System for Paving
for the rigid laying of paving stones subject to moderate loading in domestic environments
System for Slabs
for the rigid laying of natural stone, concrete and ceramic slabs subject to moderate loading in domestic environments
System for Plinth and Paving
This system describes the interface between paving/paving slabs and the building plinth
