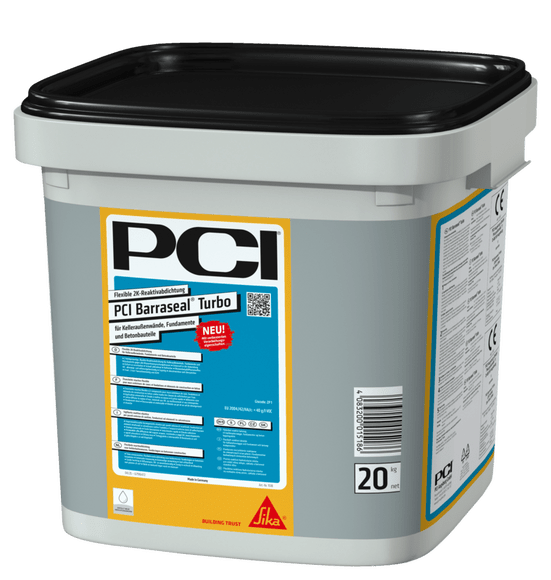

PCI Barraseal® Turbo

Flexible two-component reactive waterproofing membrane

for external basement walls, foundations and concrete elements

Technical data sheet

Flexible two-component reactive waterproofing membrane

for external basement walls, foundations and concrete elements

Technical data sheet

Areas of application

Product features

Videos

Areas of application

For indoors, outdoors, walls and floors.
For waterproofing basement walls, foundations and concrete structures to DIN 18533 (W1-E).
As waterproofing layer against pressing water in accordance with the test principles for mineral waterproofing slurry, flexible polymer-modified thick coating and transition to concrete components with high water penetration resistance.
As a damp proof course under walls to DIN 18533 (W4-E).
As waterproofing transitions of water-impermeable components and lost formwork.
As a flexible waterproofing layer to DIN 18533 (W4-E).
As surface protection system OS 5b in accordance with the guidelines for reinforced steel (RiLi SiB).
As surface / chloride protection to EN 1504-2 (table 5) for reinforced steel.
As waterproofing of a reservoir to DIN 18535 up to a water column height of 10 meters (W1-B, W2-B).
For bonding protection boards, drain boards and insulation boards.
For crack-bridging waterproofing of old damaged basement waterproofing layers.

With official test certificates in accordance with the test principles for mineral waterproofing slurry, flexible polymer-modified thick coating and transition to concrete components with high water penetration resistance. Surface protective system OS 5b in accordance with RiLi SIB.

Product features

Two-component, flexible reactive waterproofing membrane for basement walls, foundations and concrete elements against soil moisture, standing seepage water and pressing water.
Radon tight: For a high level of health protection.
For multiple use: as bonding slurry, waterproofing of surfaces, foundation walls, horizontal surfaces, for bonding drainage boards and insulation boards and as a surface protection for concrete elements.
2 mm crack bridging according to test principles for flexible polymer-modified thick coating, crack class R3.
Meets all requirements as surface protection OS 5b in accordance with the guideline for reinforced steel (RiLi SIB).
Easy to apply by spray gun, roller, brush or trowel.
Fast setting, for work under time pressure.
Curing control: ready for next layer when the color has changed.
Reliable bond, for use on mineral substrates and bituminous substrates.
Water vapor permeable, resistant to UV, aging and weather conditions.
Efficient: High dry layer thickness of approx. 90% of the amount of material applied.
Can be painted over and plastered over.
Resistant to frost, frost/de-icing salt and permeable: protects against harmful salts such as chloride.

Colors: grey

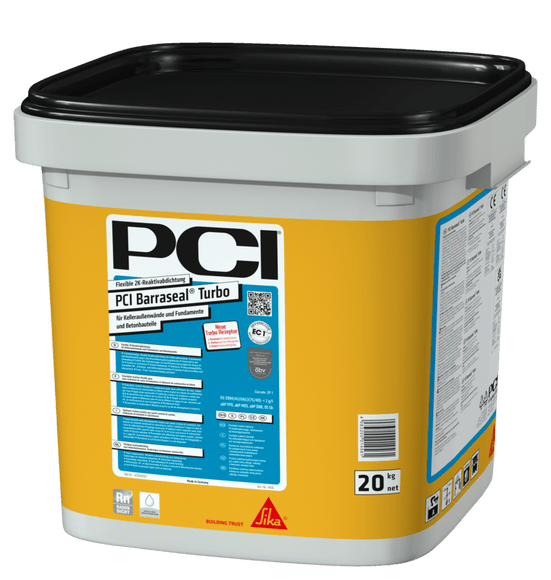

Forms of delivery: 20-kg-pail

Videos

Consumption calculator

Your specification

Thickness

Area (m²)

Calculate now

Your Result

Quantity Required * approx

corresponds

20-kg-pail

pieces

This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.
